How Solar Pump Inverters Transform Modern Family Home Water Systems and Outdoor Living
Learn how solar pump inverters enhance home water systems and outdoor living by improving efficiency, reliability, and sustainable energy use.
Do you have enough of skyrocketing utility bills and of being frustrated by having a water supply that can never be depended upon and leaves your garden withering in a heatwave? The final one is a Solar Pump Inverter. This smart energy is used to turn free sunlight into flowing water so that you have full control of the irrigation of your home, swimming pools and other ornamental water features. With the switch to solar you are not only spending money on electricity that will no longer be necessary but you are also free of grid outages and peak-hour fees.
As you keep your family lawn trim and well-maintained or you tend to live in a rural area, using a solar pump inverter is a smart, green purchase that adds to your outdoor lifestyle and adds immensely to the value of your property. It is the surest way of having a successful landscape and a pool of crystal clear water without ever having to pay a power bill again.
What Is a Solar Pump Inverter for Home Applications?
A Solar Pump Inverter is a complex power converting apparatus that converts DC (direct current) electricity a rooftop solar panels or yard-mounted solar panels produces into the fine AC (alternating current) or optimised DC power to operate water pumps efficiently. The solar pump inverters, unlike traditional inverters, utilize an advanced technology, Maximum Power Point Tracks (MPPT) and smarter motor control algorithms that have been created with water pumping applications in mind.
These intelligent systems do not simply transform power, they also harvest all the rays of accessible solar energy, shield pump motors against voltage variability, function during low-light situations, and do not require grid electricity to drive water pumps. This offers 100 percent power autonomy and sustainability to the water management requests of your family home.
How Solar Pump Inverters Work: Sunshine to Water Flow in Your Backyard
The working of a solar pump inverter is a loveliest process:
Solar Panels Photovoltaic solar panels (you can install them on your roof or garage or a ground mount in the back yard) are panels that directly change sunlight into DC electricity. The amount of power produced differs during the day as per the intensity of sunlight, weather conditions, and the position of panels.
MPPT Technology Maximizes Energy Harvest The maximization of power gained by photovoltaic panels according to the output of the solar panels is done by the Maximum Power Point Tracking system in the solar pump inverter which continuously measures the output of the solar panels and automatically gets the maximum possible power -even during cloudy weather or in the early morning or late afternoon when the sun is weaker.
Smart Power Conversion The solar pump inverter will transform variable DC solar power to regulated AC or DC power to suit your pump motor. Complex algorithms allow the operation of the motor to be smooth, remove power spikes, and protect against voltage changes, which may lead to the destruction of the pump.
Variable Frequency Drive (VFD) Control Inverter The inverter controls the speed of the motor depending on the amount of sunlight it has access to- faster during cloudless sunshine, slower under gray weather. This offers uniform water flow during the day without the need to store batteries and avoids the strain on the motor.
Integrated protection Systems Temperature, voltage, current, and motor monitoring built-in protection will automatically turn off or vary operation to avoid damage caused by dry operation, undue heat, overloading, or electrical faults.
Why Choose a Solar Pump Inverter for Your Family Home?
Traditional grid-powered and diesel pumps are associated with recurring expenses, environmental consideration and reliability issues. Solar pump inverters are cheap, green and reliable water supply with very little maintenance- the ideal solution to the modern family lifestyle.
Benefits for Your Family Home and Lifestyle:
Eliminates Electricity Expenses: When you run your garden irrigation, pool circulation, and water features at zero operating expense, which is powered by free and renewable solar energy.
Drastically Lowers Utility Bills: With built-in off-grid systems, there are no utility bills to pay; with hybrid systems, electric bills are reduced to virtually zero.
Silent Operation: No noises such as diesel generators or loud electric motors - keep backyard tranquil so family can be together and relax.
Limited Maintenance: No oil changes, no fuel filters, no engine servicing—just occasional solar panel cleaning and standard pump maintenance.
25+ Year Life: Solar pumping systems are decades of service to your family with correct installation and maintenance requirements.
Best to fit Rural Homes: has a good performance even in remote areas where they have no access to the grids or they are not reliable.
Ecologic Sense: Carbon-free and fossil fuel-free, you are learning your children the value of living sustainably.
Energy Security: Secures your family against grid uncertainties like loss of power and increased utility costs- particularly during such periods when there are peak requirements during summer.
Increased Water Management: Intelligent MPPT technology utilizes all the sun rays maximizing the irrigation even during half-cloudy days.
Lush Lawns, Blooming Gardens and Trees Beautiful Landscaping: With quality and affordable watering services, your lawns, gardens and trees can be healthy, lush and help you increase the value and beauty of your property.
Increase in value of your property: Solar facilities increase resale value and appeal to your house to environmentally aware buyers.
Quality Family Time: Automated systems remove chances of manual management of watering schedules, which amounts to more time with loved ones.
Normal 1-5 Years payback period: by using the saved electricity, which is eliminated and then you have decades of free water pumping.
Common Family Home Applications: Where Solar Pump Inverters Excel
The solar pump inverters offer versatile water in solution to millions of home applications:
Garden and Landscape Irrigation:
Drip irrigation on vegetable gardens and raised beds.
Lawn sprinkler systems and ornamental garden sprinkler systems.
Flower bed and landscaping watering system.
Home gardening, watering of green houses.
Fruits and berry bushes are automatically irrigated.
Swimming Pool Systems:
Filtration and circulation of the pools.
Pumps in water features (fountain) and waterfalls.
Pool heating circulation
Spa and hot tub systems
Water replacement and filling up of the pools.
Residential Water Supply:
Main Water supply to off-grid rural households.
Home grid connected back up water systems.
Country property pumping of wells.
Distribution of rainwater harvesting systems.
Have multi-story homes pressurized.
Outdoor Living Features:
Pumps in decorative fountains and ponds.
Stream circulation and waterfall.
Koi pond aeration and filtration.
Pumps, bird bath and wildlife water features.
Systems of garden pond maintenance.
Home Food Production:
Automation of irrigation of vegetable gardens.
Home based aquaponics.
Small scale hobby farm watering.
Watering points of chicken and small livestock.
Infrastructure irrigation of orchards and vineyards to home cultivators.
Property Maintenance:
Lawn watering systems
Walkway and driveway cleaning systems.
Car washing stations
Outdoor pool and beach shower systems.
Garden hose distributors across big lands.
Sustainable Living Projects:
Pumps of greywater recycling systems.
Supply of water to toilet composting.
Homestead water systems Off-grid water systems.
Irrigation of permaculture garden.
Independent water management of property.

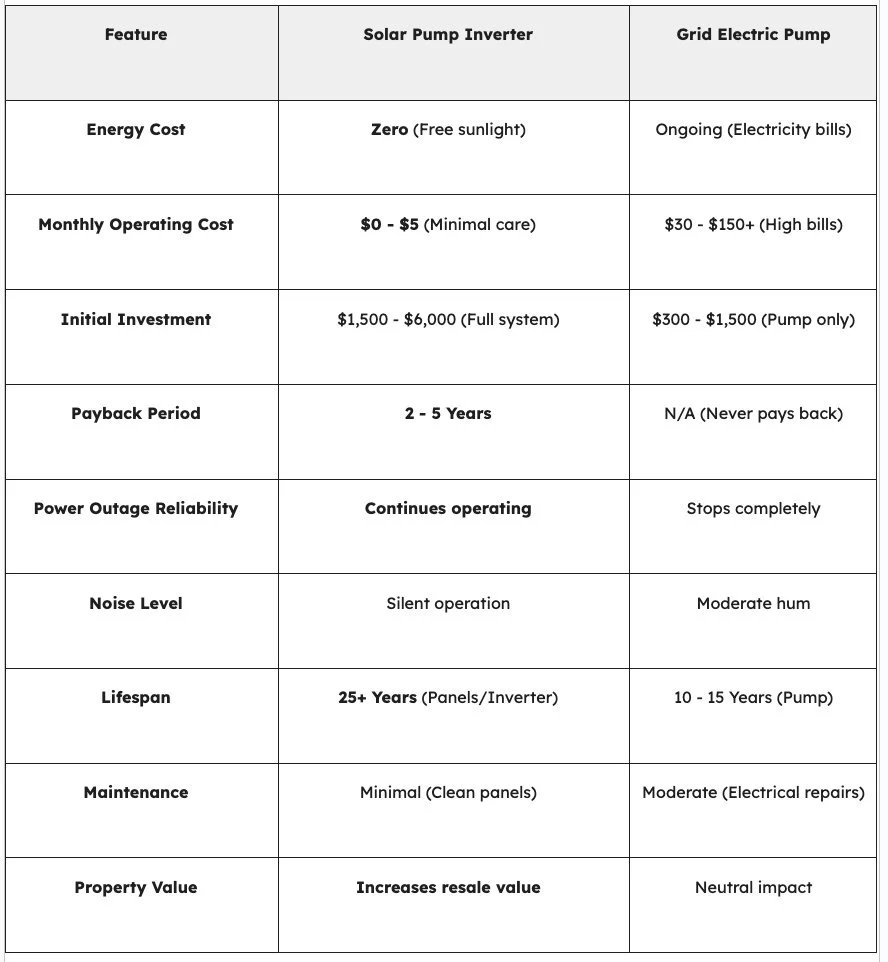

Solar Pump Inverter vs. Grid Electric Pump: Home Comparison
How to Choose the Best Solar Pump Inverter for Your Home
The choice of solar pump inverter guarantees that the water systems of your home are functioning productively, dependably and inexpensively:
1. Total Dynamic Head (TDH) & Water Source Before purchasing, you have to decide what your water source is (deep well, pond, or tank) as well as the height that the water must fall vertically. You may need a submersible pump when the wells are deep or a surface pump when the sources are shallow, but it is important to have the inverter as per your requirements regarding the elevation and pressure in order to maintain the flow.
2. Modern MPPT Technology to achieve Efficiency Find an inverter with a Maximum Power Point Tracking (MPPT) efficiency of 99%+. This technology makes the most out of the energy generated day after gloomy day or when it is low-light (early in the morning/late in the afternoon). It is capable of boosting your total water production up to 30 percent of the normal systems.
3. Inbuilt Motor Protection and Durability To save your money, your inverter should have Dry-run protection (shuts down the pump when the water source is dry) and Soft-start to lessen mechanical stress. Besides, make sure that the unit is IP65-rated, meaning it is a dust- and waterproof unit that can be used outdoors in severe weather conditions.
4. Modern inverters provide Wi-Fi/Bluetooth connectivity on Smart Monitoring and Grid connectivity Smart inverter provides you with the option to monitor your water use and system health through a smartphone application. You also must choose between having an Off-grid system which will give you total independence or a Hybrid system which can switch to grid power at night so that your pools and gardens can be maintained 24/7.
Installation Tips for Home Solar Pump Systems
Due installation is the best guarantee of your family home system working to its full capacity, safety and durability:
Solar Panel Installation
Orientation Face panels true south (Northern Hemisphere) or true north (Southern Hemisphere) to maximize daytime sunshine intake.
Tilt Angle: Angle to be set should be about the same as your latitude to guarantee performance throughout the year or change with the season to achieve the best results.
Mounting Options:
Roof mounting: Use available roof space; it must have structural integrity to support panels.
Ground mounting: The best type of mounting is in properties where there is a lot of yard space; mounting is easier to maintain.
Garage/shed mounting: other sites, which do not impact on the appearance of the home.
Pergola integration: Dual-purpose buildings that are used to create shade and produce power.
Shading: Do not have panels shaded out by trees, buildings or structures during the day - even partial shading will cut output down by a significant factor.
Wiring: DC cables (usually with a cross section of 10-12 AWG) should be used with the correct type of UV-resistant connectors. Cable runs should be kept short to a minimum to reduce voltage drop.
Inverter Placement
Location: Put solar inverters somewhere cool and well ventilated in places that are not exposed to direct sunlight and rain like the garage walls, shaded outdoor enclosures, or utility rooms.
Accessibility: Mount on which family members can see status indicators easily but can not be changed by children.
Ventilation Clearance: Have at least a 12 inch free space all around to allow cooling air movement.
Water Protection: All IP65-rated models can use more weather protection-flood prone areas.
Pump Installation
Submersible Pumps: Support as deep as possible- at least 3-6 feet below anticipated water level with correct submersible cable and watertight connections.
Surface pumps: These are mounted on firm, flat surfaces (concrete pads are most resistant); they must be weather-resistant with a housing; should be primed adequately before use.
Check Valves: Fit foot valve on intake side of pump to keep it primed; fit check valve on delivery line to keep water back and water hammer eliminated.
Electrical Connections
DC Input: Attach inverter DC terminals to solar array with correct polarity (inverter can be destroyed with incorrect polarity). Install DC isolator switch to avoid accidents.
AC Output: Install inverter output to pump motor with the correct size cable depending on current ratings and distance.
Grounding: Ground inverter chassis, pump motor and solar panel frames properly to avoid electrical shock and lightning damage- critical safety measure.
Protection Devices: Have surge protecting devices (SPDs) on DC and AC sides; have fuses or circuit breakers of proper rating.
Water Level Controls
Install water level sensors or float switches to avoid a dry-up in case of a water source that runs dry. Modify the dry-run protection settings of the inverter to pump details. Install connect level sensors to inverter control inputs so they can run automatically.
Maintenance and Care for Long Lasting Performance
Solar pumping systems do not require much maintenance, and however, in order to last 25 years or longer adhere to the following schedule:
1. Solar Panel Care
Monthly: Wipe down panels by using water and a soft cloth gently so as to remove dust or bird droppings (Dirty panels lose 15-30% efficiency).
Quarterly:Neglecting to trim branches near the yard will result in shade; inspect the mounting bolts, loosely mounted.
2. Inverter & Pump Health
Weekly Check: Look at the display to see whether there are any "Fault Codes" or warning lights.
Monthly: Make sure that the cooling fans on the inverter are clean and inspect visible pipes of the inverter whether they allow water to leak.
Each year: Hire an electrician to inspect the electrical connections to check the corrosion of the wires and test the seals or bearings of the pump.
3. Predicted Purview (Replacement Schedule)
Solar Panels: 25-30 years (Very strong).
Pump Motor: 10 -20 years (Depending on usage).
Solar Inverter: 10-15 years (The "brain" of the system).
Advanced Features in Modern Solar Pump Inverters
The current solar inverter is far more than just a converter; they are smart controllers to your house:
Smart Energy Harvesting (MPPT & VFD): MPPT algorithms can optimally utilize the power in the dark and Variable Frequency Drive (VFD) can also adjust the speed of the pump according to the intensity of the sun in a smooth manner and reduce mechanical wear and tear.
Soft-Start Technology: The inverter does not provide a sharp power on, but accelerates the motor gradually. This eliminates power bursts and the bearings and impellers of your pump are kept safe, greatly extending the life of your system.
Automated Water Management: The system has sensors that are inbuilt which means that it automatically switches on when your tank is low and off when it is full. This not only avoids wastages of water, but also avoids the damage of the pumps due to dry running.
Remote Monitoring and Smart Home Integration: You can monitor performance and get notifications about faults and operate the pump using the Wi-Fi or Bluetooth on your smart phone. Even the premium models are voice controlled and can be linked with Alexa or Google Home.
Hybrid Power Management: Advanced models have the capability to automatically switch between solar, grid and generators. They focus on using free solar power in the daytime and only use the grid when needed so that your water does not go off.
Common Challenges and Solutions for Homeowners
Homeowners usually possess fears prior to the transition to solar. The modern technology solves them in the following way:
Cloudy Weather: Since you are on a charitable basis, you can continue pumping even on a gray day by using 1.4 times the power of your panel array. To be 24/7 reliable, Hybrid systems will automatically switch to the grid at the time the sun is not up.
High Initial Cost: The initial cost may appear to be high, but it is affordable with government tax credit (typically 30-40) and financing. In addition, the system normally recovers itself within 2 and 5 years.
Space & Aesthetics: When you have a small roof or just do not want to see it, you can place ground-mounts in the yard or arrange the panels on sheds or pergolas. Forget the roughness of the old black on black panels, modern black-on-black panels are silky and beautiful to match your house design.
Technical Complexity: You do not have to be a specialist. The new inverters are easy to use products with smartphone applications that give you a notification in case something requires attention.
HOA or Legal: There are laws in many places that are called Solar Access Laws, which guarantee that you have a right to install solar. Slick designs and strategic placement behind fences normally meet even the most rigid neighborhood regulations.
Future Trends in Residential Solar Pump Technology
The solar pumping industry is still developing and bringing some thrilling transformations to the home owners:
Smart Home Integration
Greater connectivity to home automation systems- irrigation systems which can automatically respond to weather predictions, soil moisture sensors, and seasonal plant requirements. The ability to operate using a voice through Alexa, Google, Siri.
Artificial Intelligence optimization.
Smart systems utilise AI to understand the family dynamics and likes and dislikes, automatically adjusting pumping schedules, anticipating maintenance, and adjusting to changes of the season without manual software customization.
State of the Art Battery Technology.
Cheap lithium batteries that can pump 24-hours allow use in applications that need to run through the night: perfectly suited to pool heating, night irrigation in hot climates, or overnight running of water features.
Integrated Water Management.
Fully integrated residential water systems with solar pumping and rainwater collection, greywater recycle, intelligent irrigation timers and water leaks all controlled by one smartphone app.
Modular, Expandable Designs
Plug-and-play systems that enable homeowners to begin with basic (small home garden irrigation) and scale up (add pool system, water features) without having to replace equipment with ease - barriers to entry are lessened by this.
Bifacial Solar Panels
Sunlight-gathering panels on either side that raise the energy output of the panels by 10-20 percent - particularly when placed over reflective surfaces such as light gravel and patios or pool decks.
All-in-One Solutions
Specially designed integrated pump/inverter/controller units (sized to fit typical residential installations, such as standard pools, typical lawn size) to make it easy to select and install such devices by homeowners.
Sum Up
A quality solar pump inverter is a smart move towards energy self-sufficiency and eventual savings of your family house. You will be able to afford a beautiful garden and glowing swimming pools by going to free sunlight that will not charge you with high bills of a glitching grid. This is a proven technology that does not only pay itself in a few years but improves the value of your property and offers a sustainable lifestyle to the future generation. In order to achieve optimum results, select a system with high MPPT technology to suit your unique water requirements. Gone are the days of high electricity bills to enjoy your outdoor life but now accept solar energy and know your home will have a beautiful and green as well as affordable future.
